What do the icons mean?

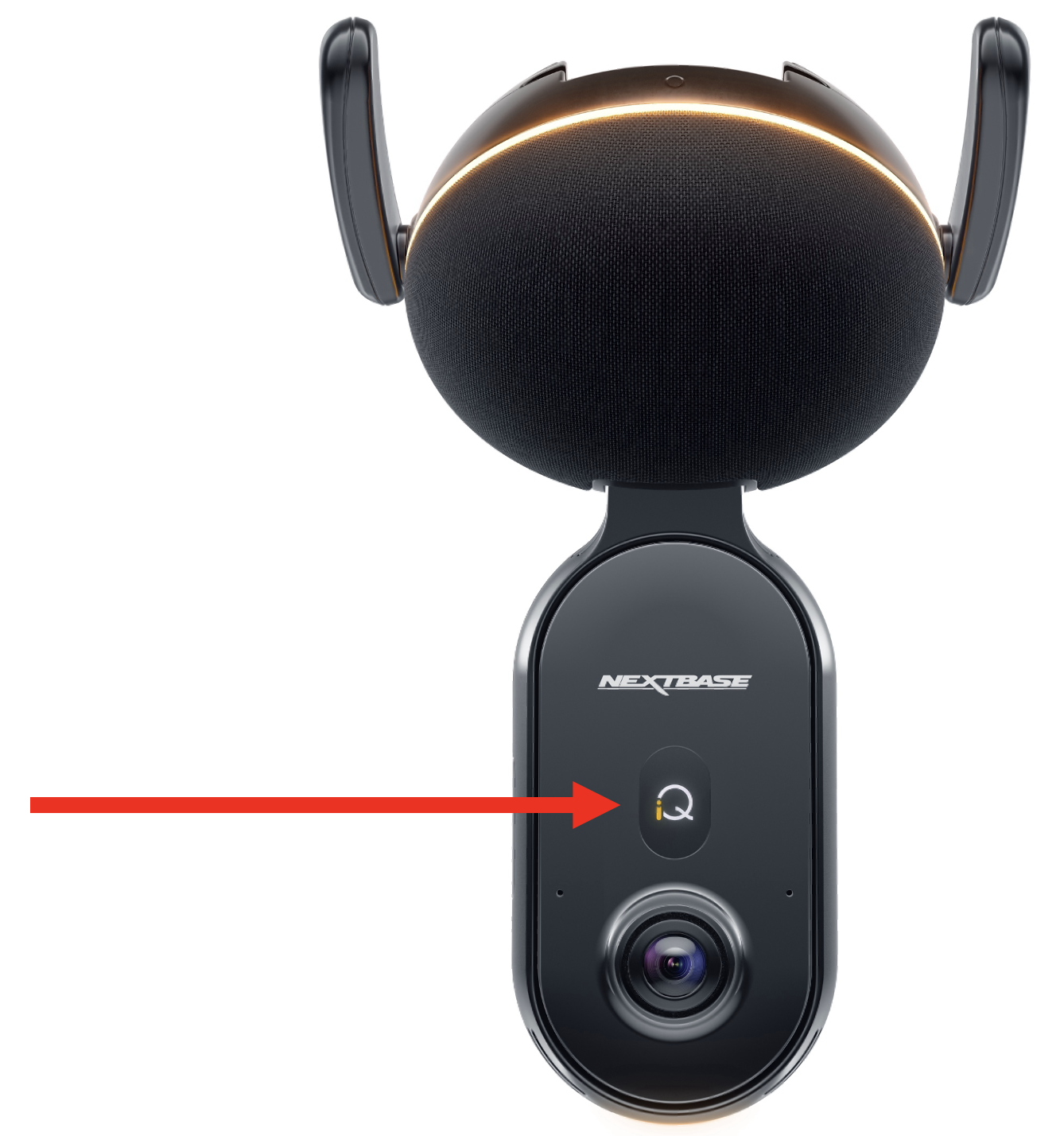

The screen facing into the cabin will show icons. The below picture shows where the screen is located with the default "iQ" logo.
iQ Icons

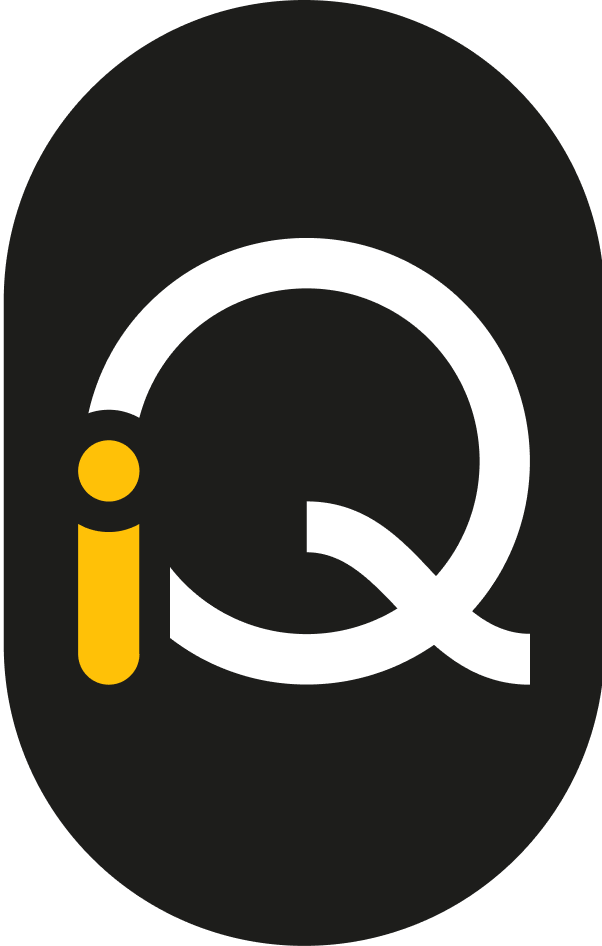

| Power On Screen | |
|

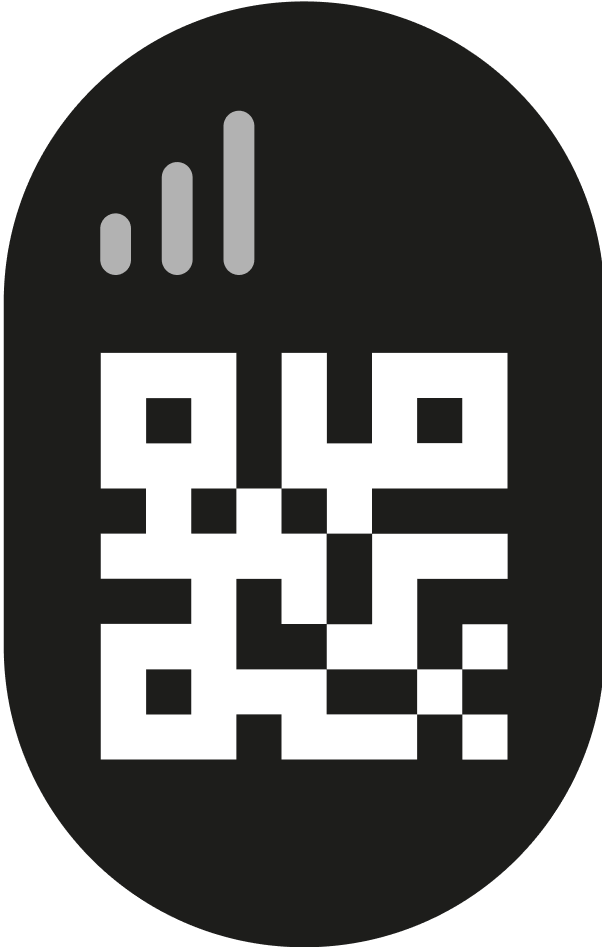

QR Code - Link to your iQ using QR Code. To scan this you must use the Nextbase iQ app. |
|
| iQ preparing for Setup | |

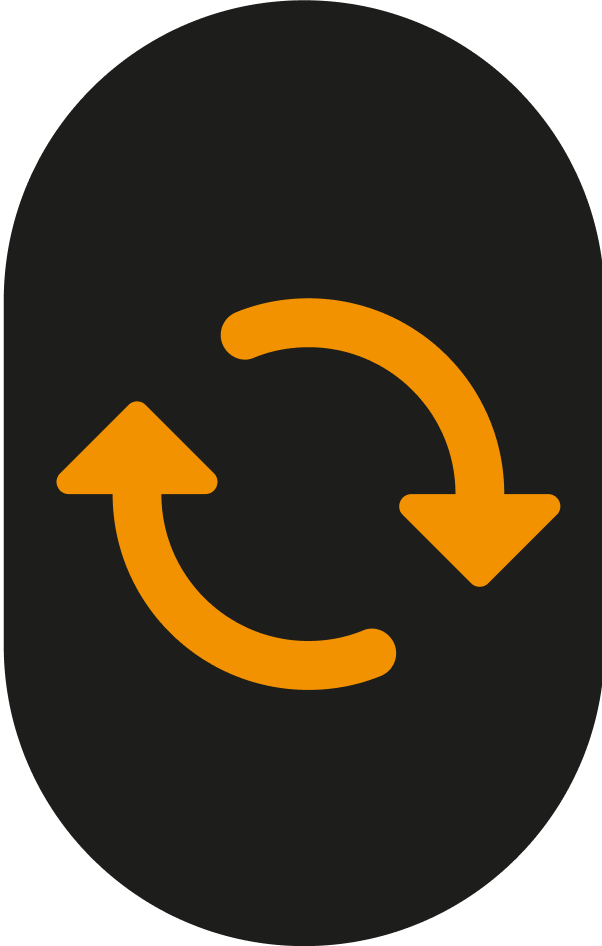

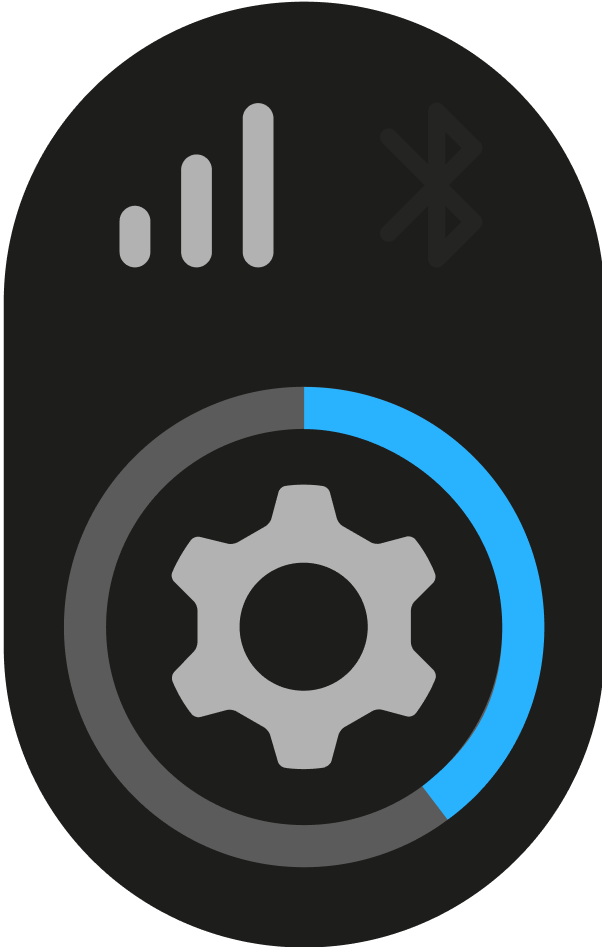

| iQ Setup in Progress | |

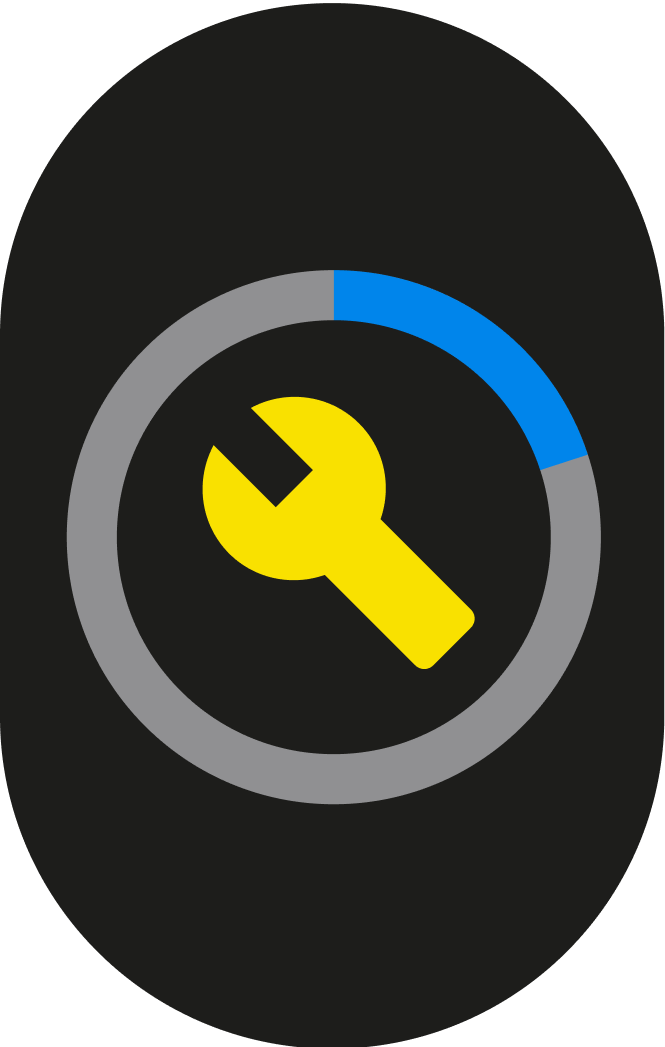

| iQ Update in Progress | |
|

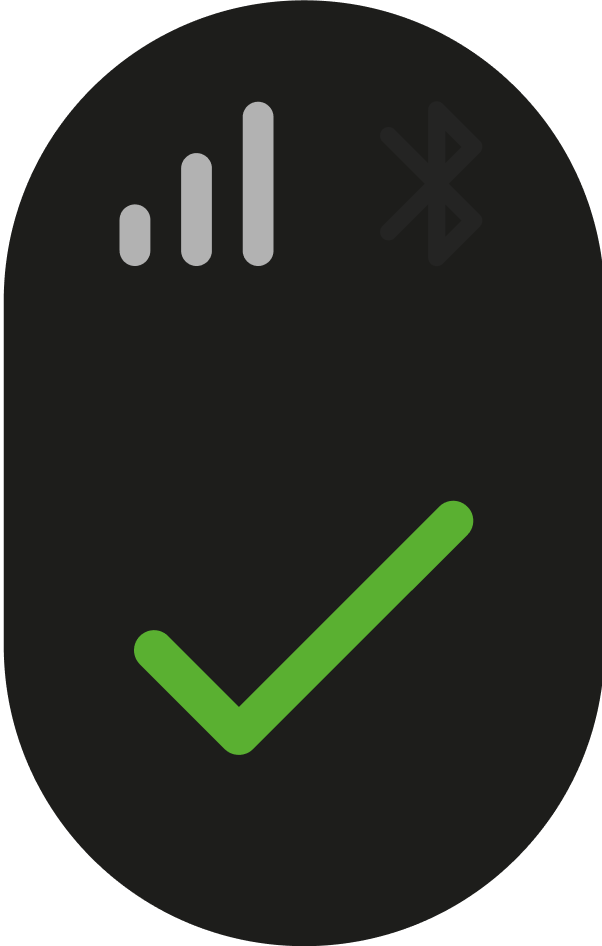

Action successfully completed Setup, Update etc. |
|
|

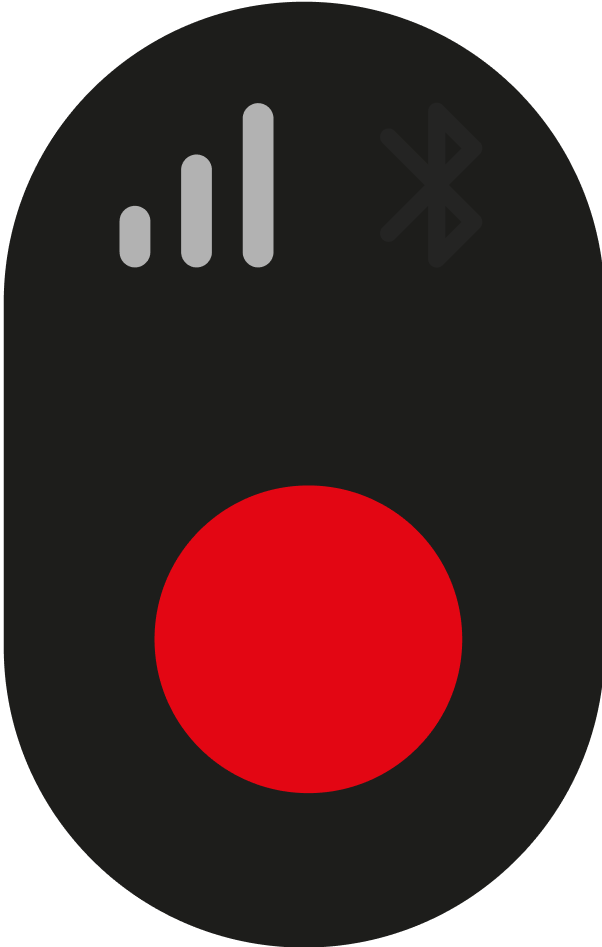

Loop Recording in progress Seen in normal driving mode. |
|
|

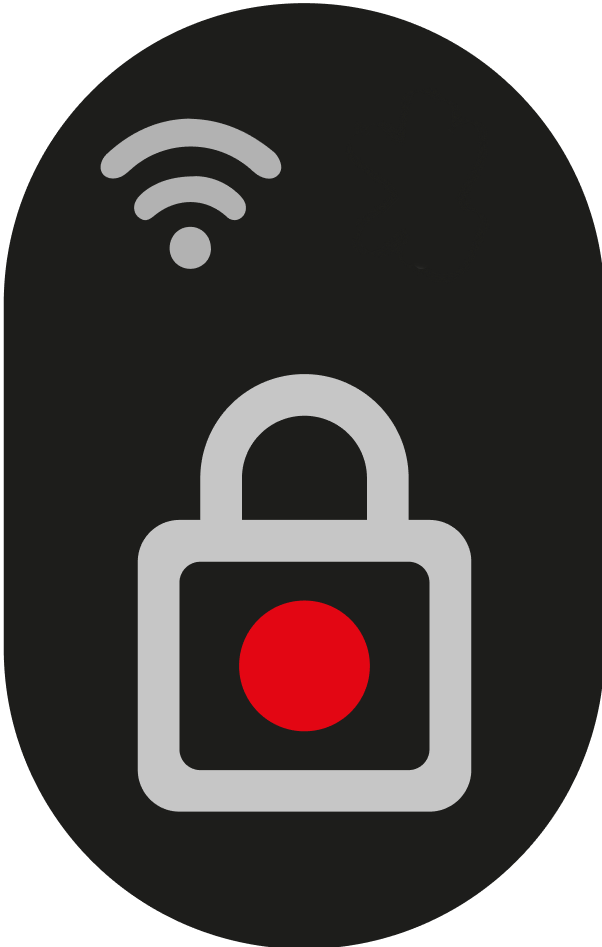

Footage Protected |
|

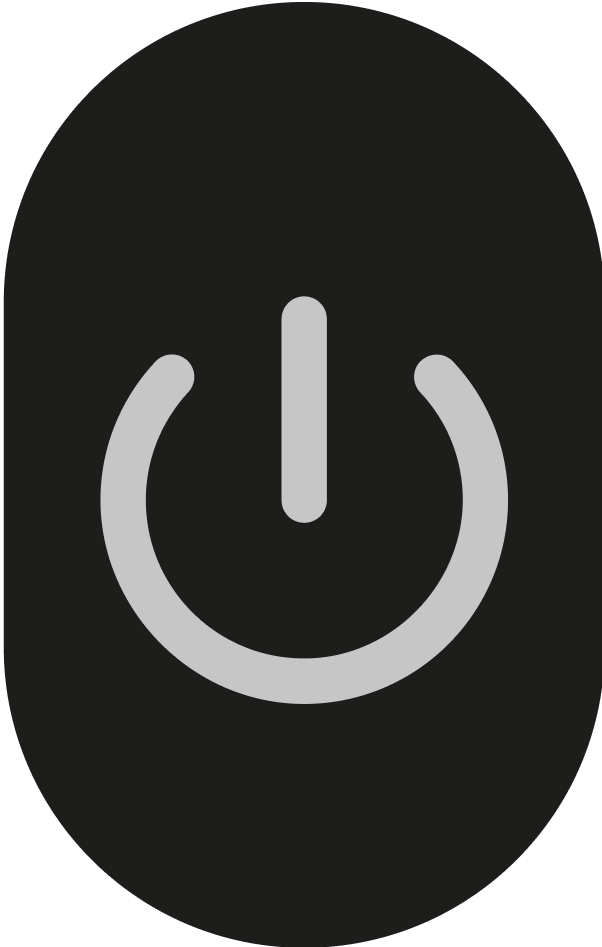

| Power Off Screen | |
|

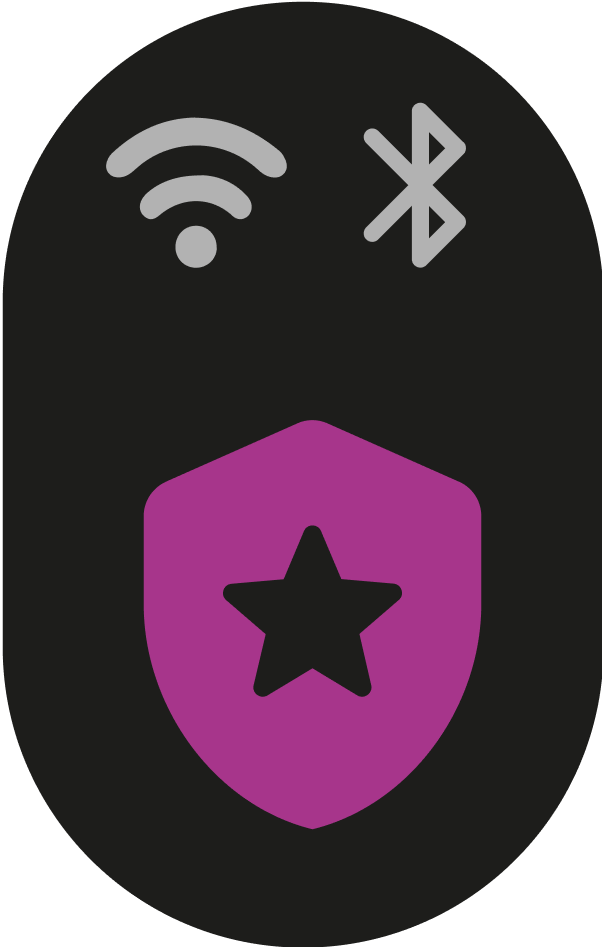

Witness Mode Active Activated by voice "Hey Dashcam start witness mode" Turn off with "Hey Dashcam stop witness mode" |
|
|

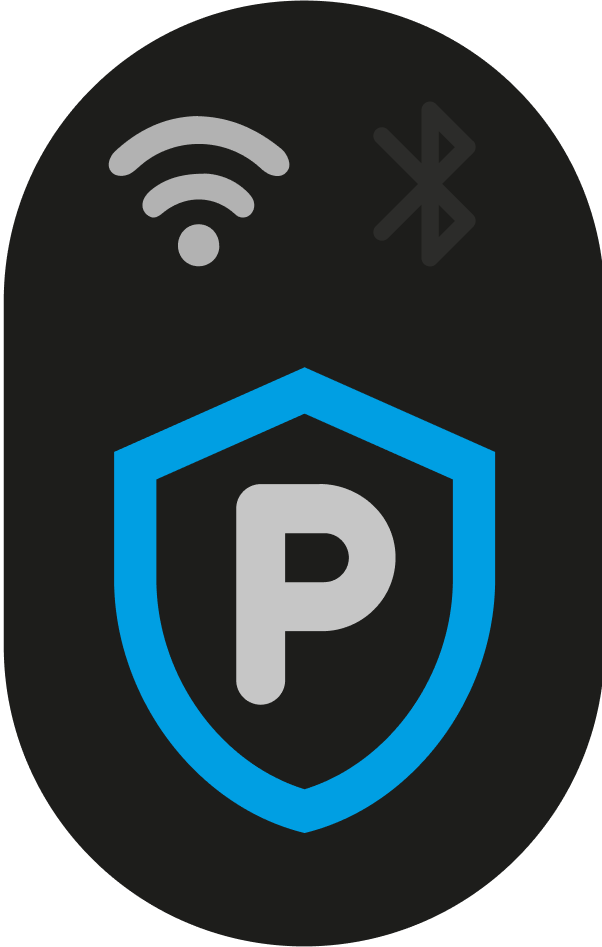

Smart Sense Parking Active iQ will detect movement and record when needed |
|

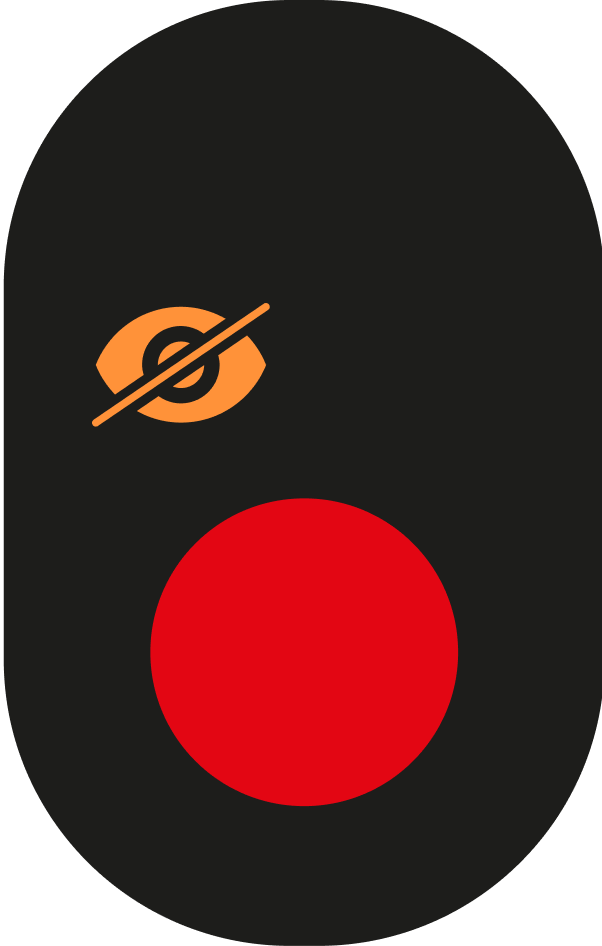

| Loop Recording with Privacy Mode Active | |

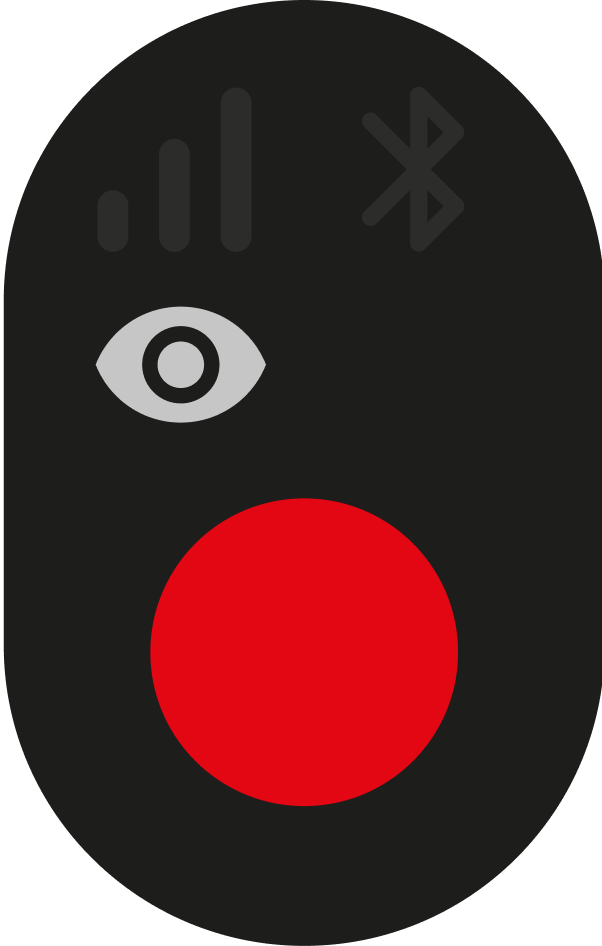

| Loop Recording with Live View Active | |

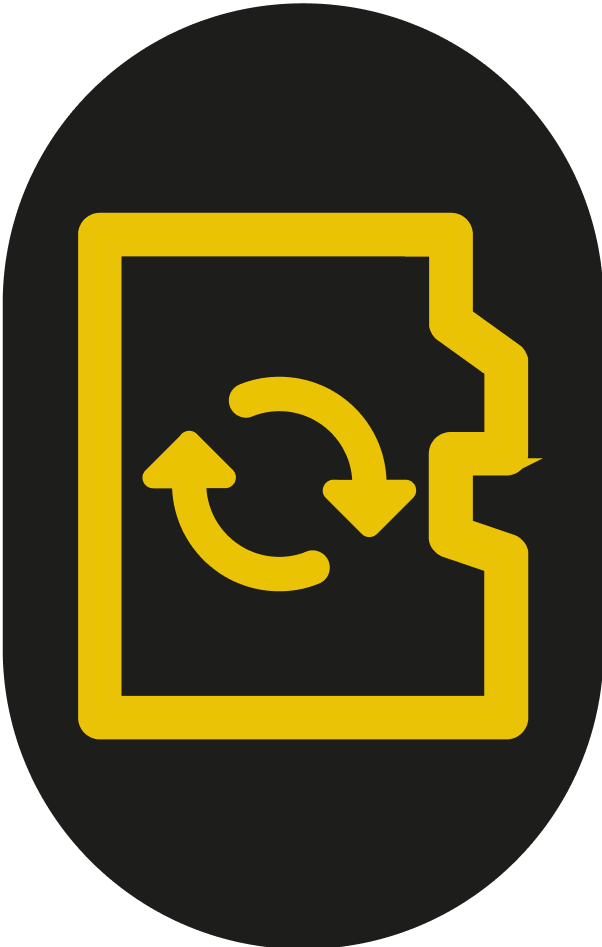

| Formatting SD Card | |

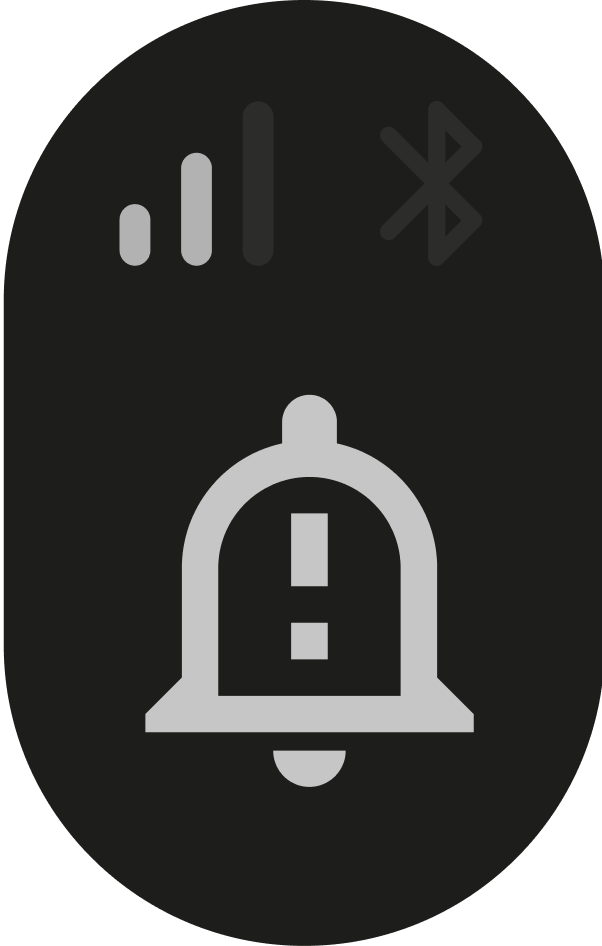

| Siren Activated Through App | |

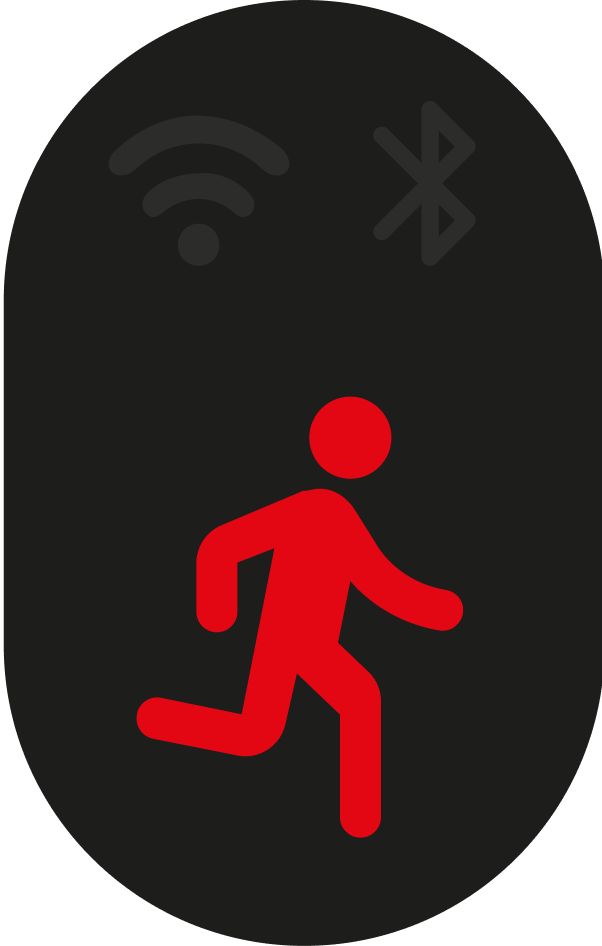

| Motion Detected | |

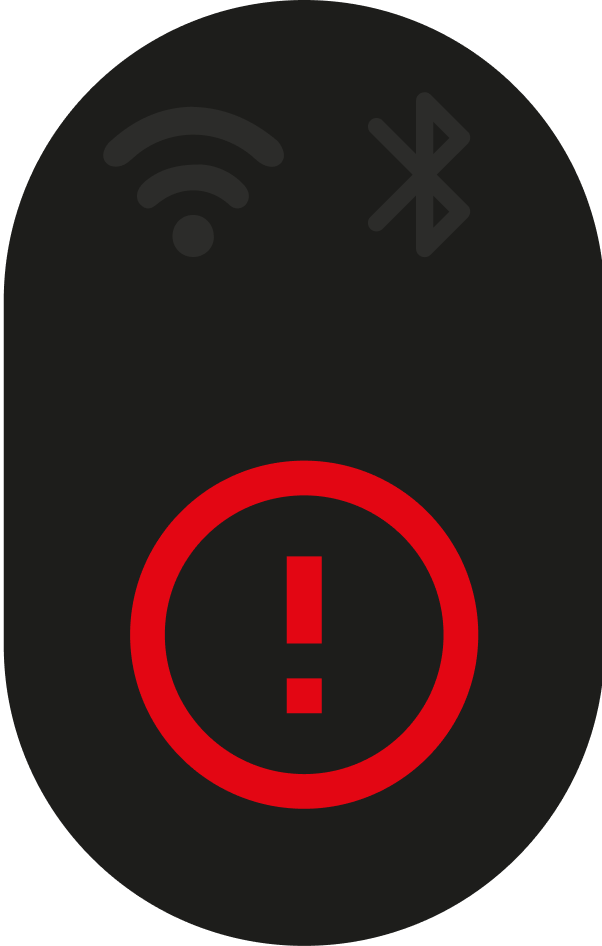

| Impact / Vehicle Movement Detected | |

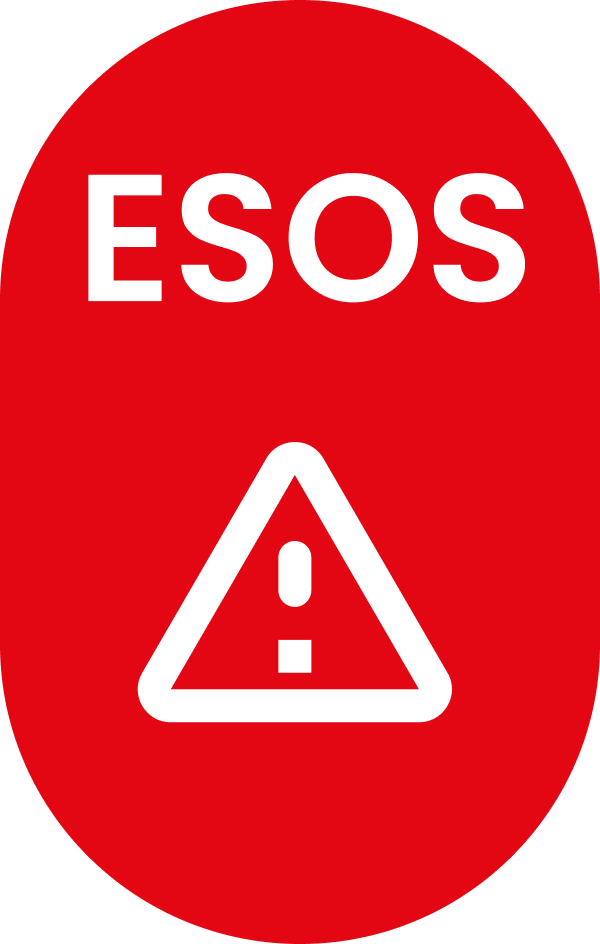

| Emergency SOS Mode Activated | |

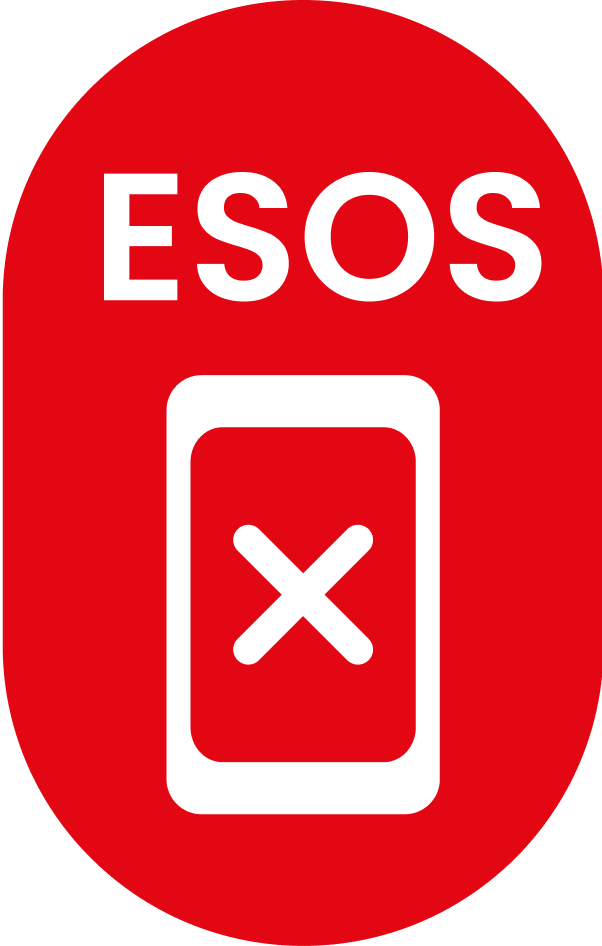

| Emergency SOS Error | |
|
|

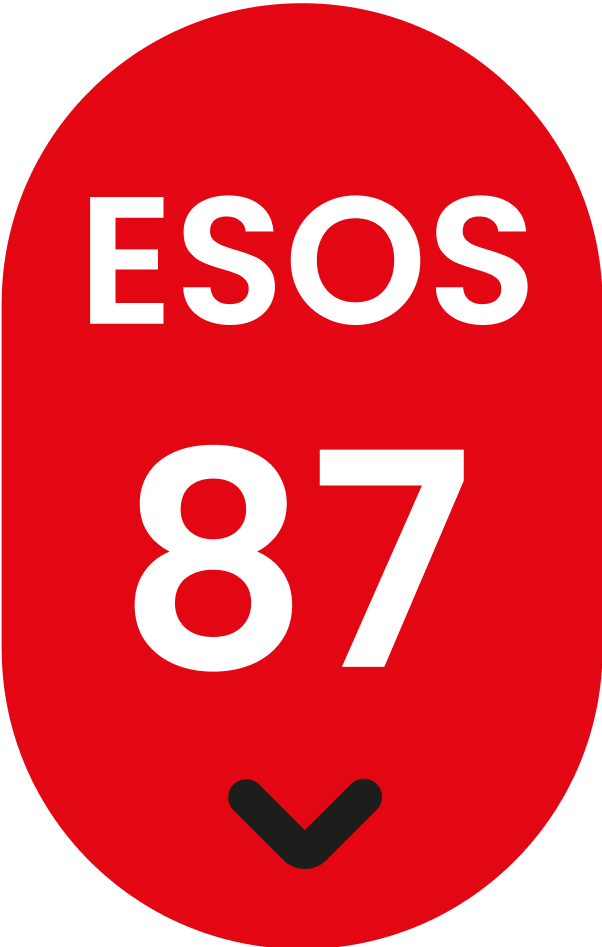

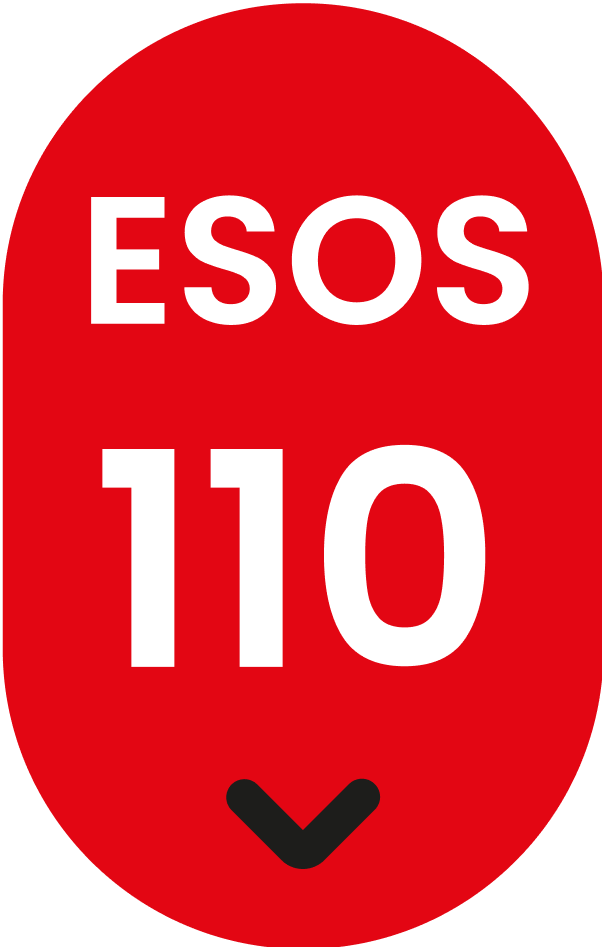

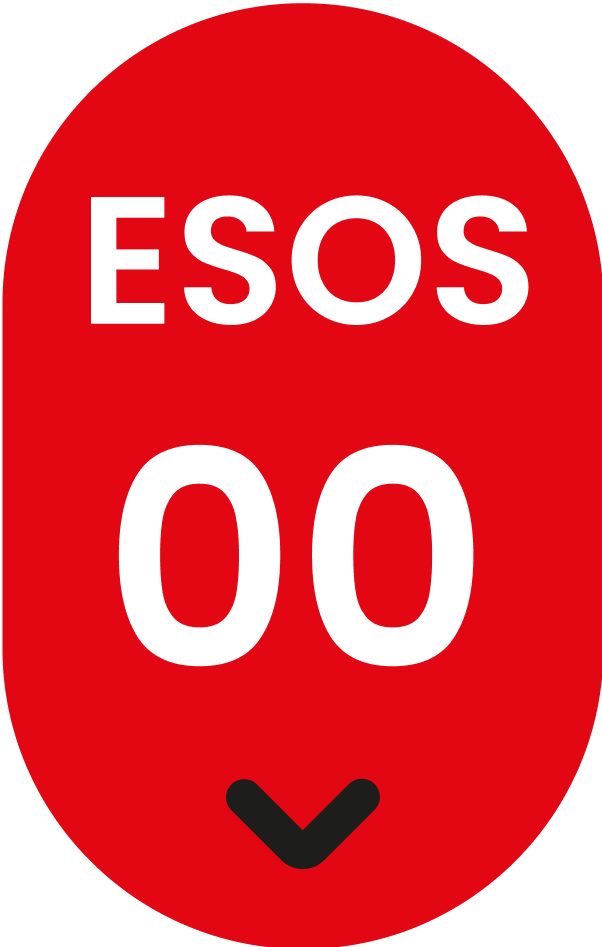

Emergency SOS Countdown from 110 to 0 |
|
|

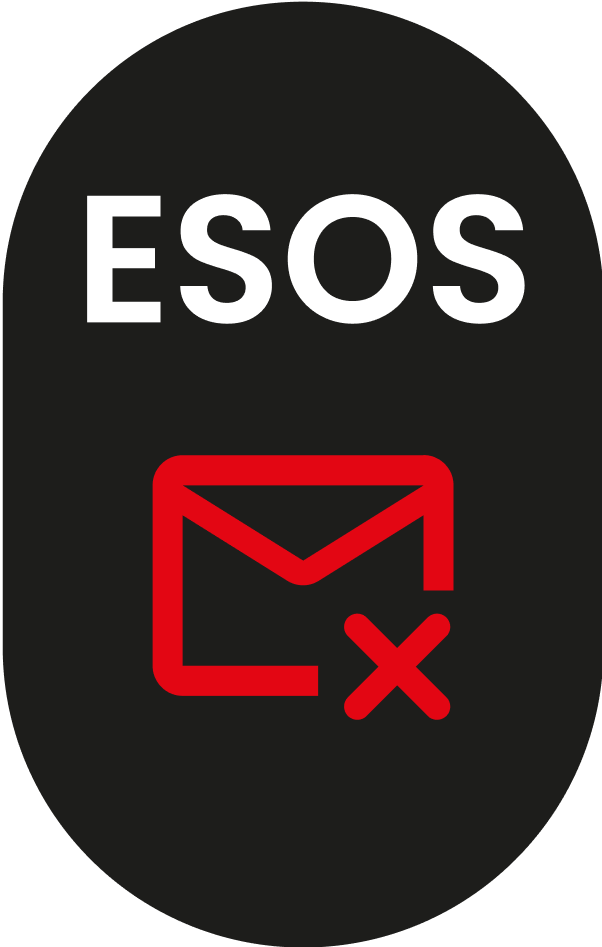

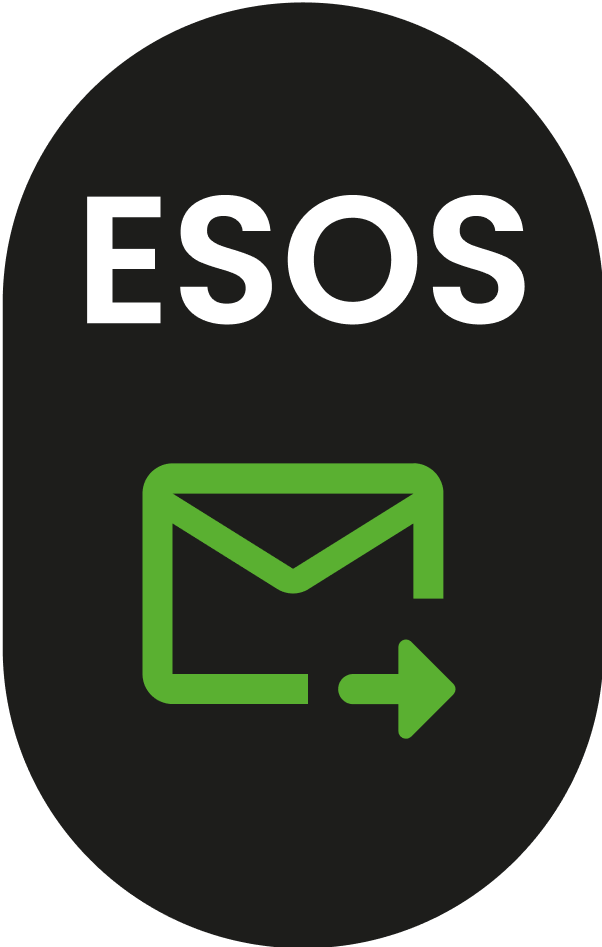

Emergency SOS Message Sent / Failed - In the event of failure your iQ must be reset |

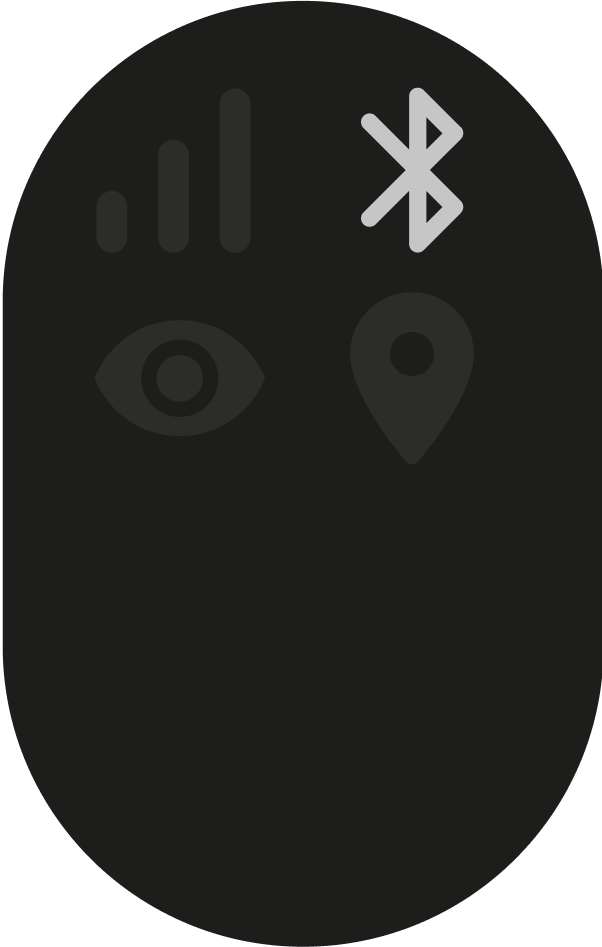

| iQ connected to mobile phone using Bluetooth | |

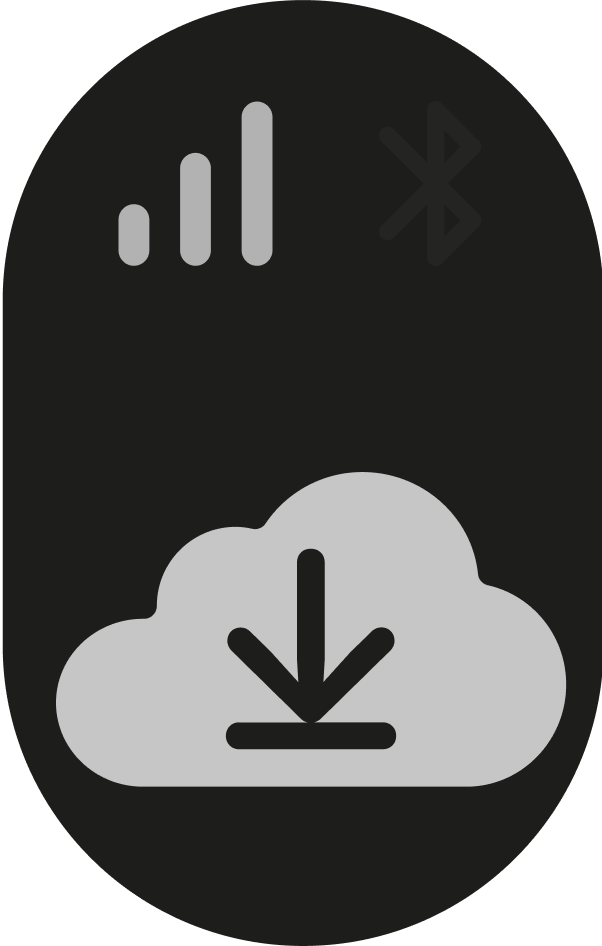

| Remote Cloud Transfer | |
|
|

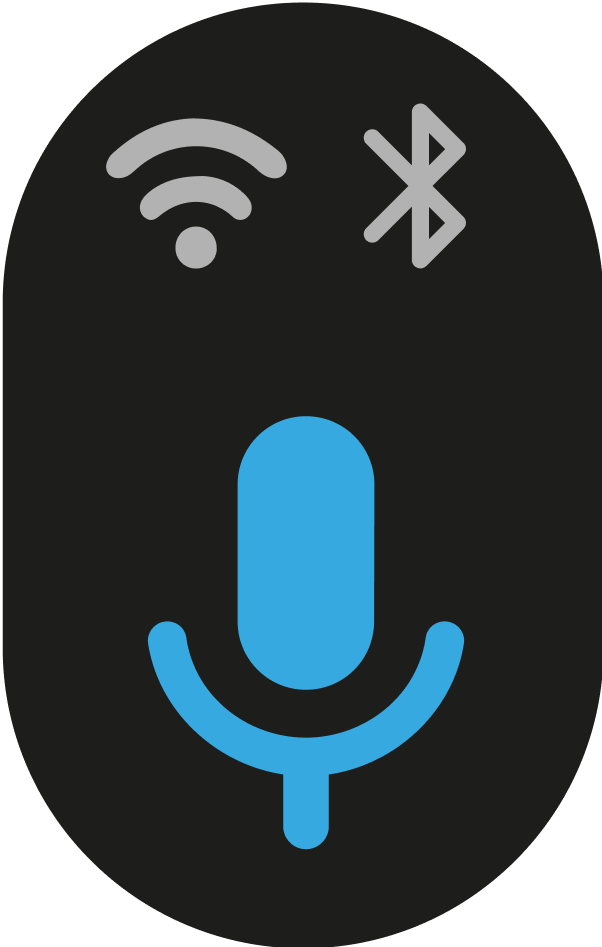

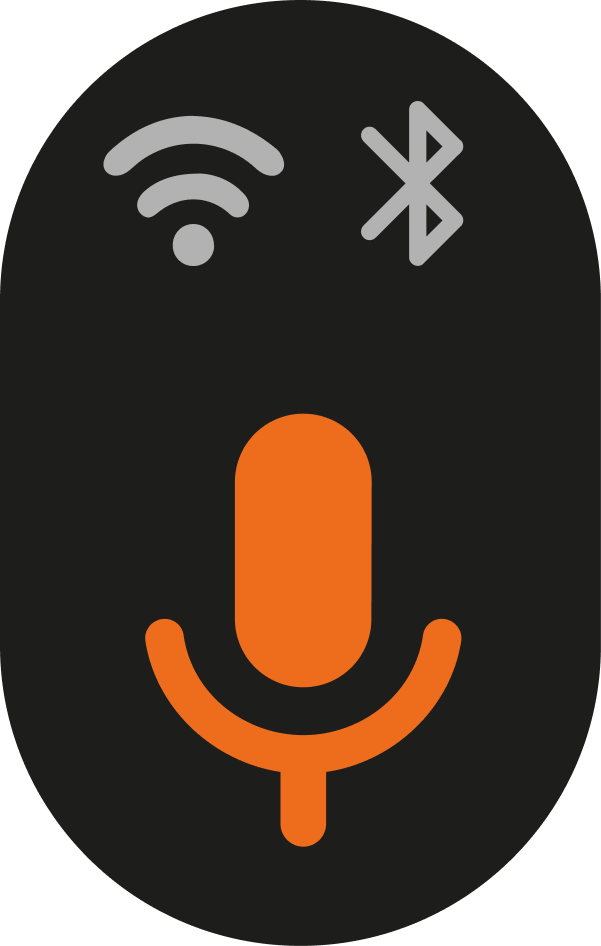

Voice Command Processing / Not Recognised |
|
|

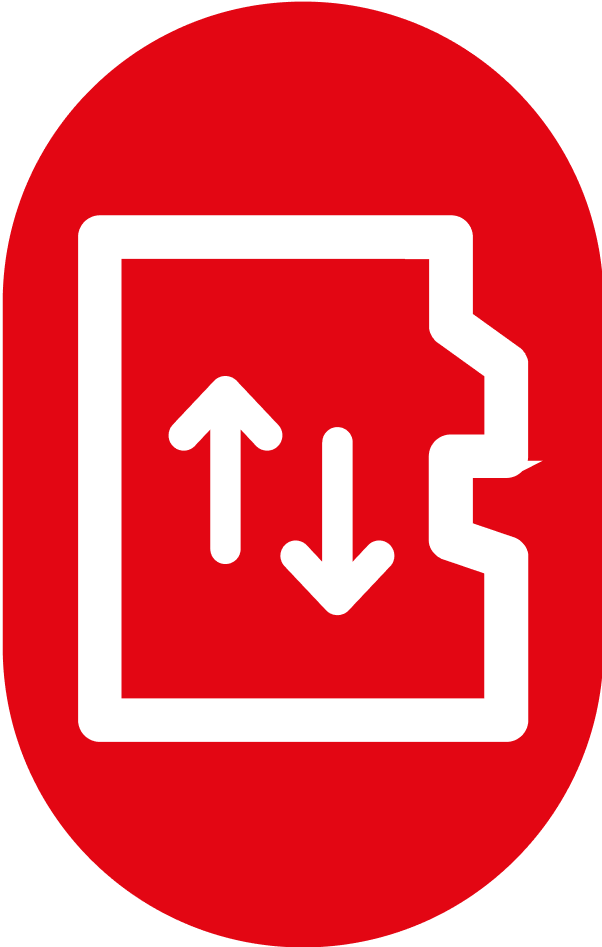

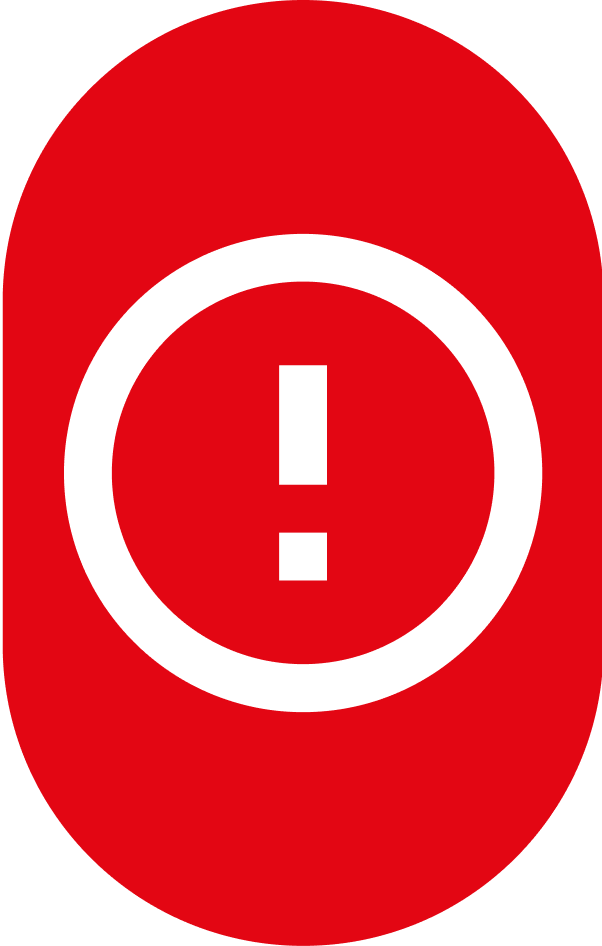

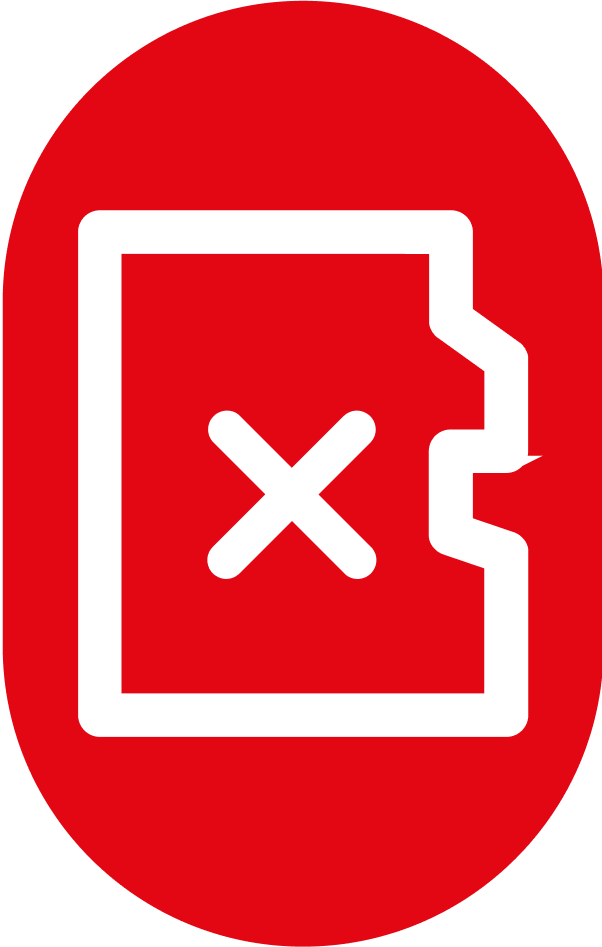

Error States - Replace SD Card / SD Card not detected / General Error |
|
|

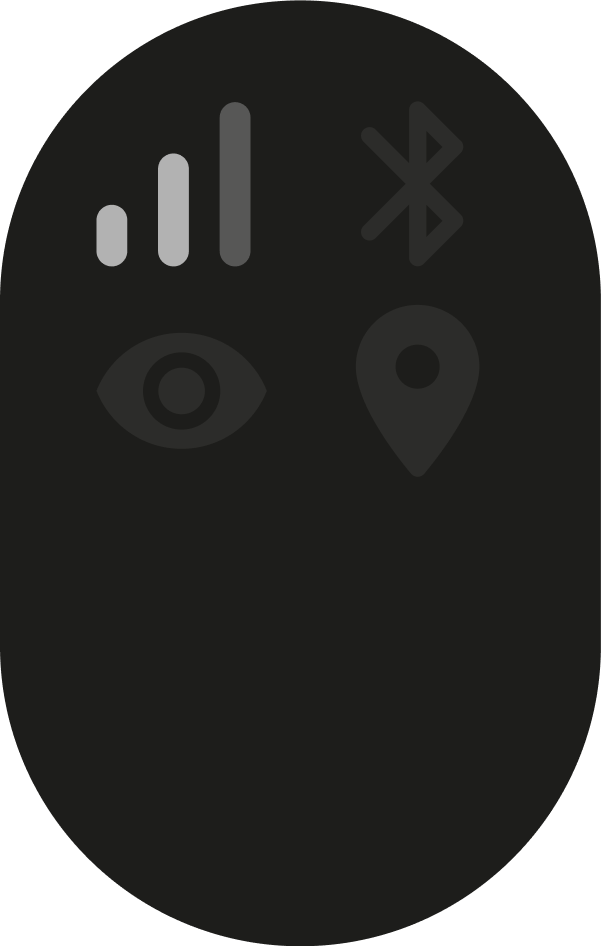

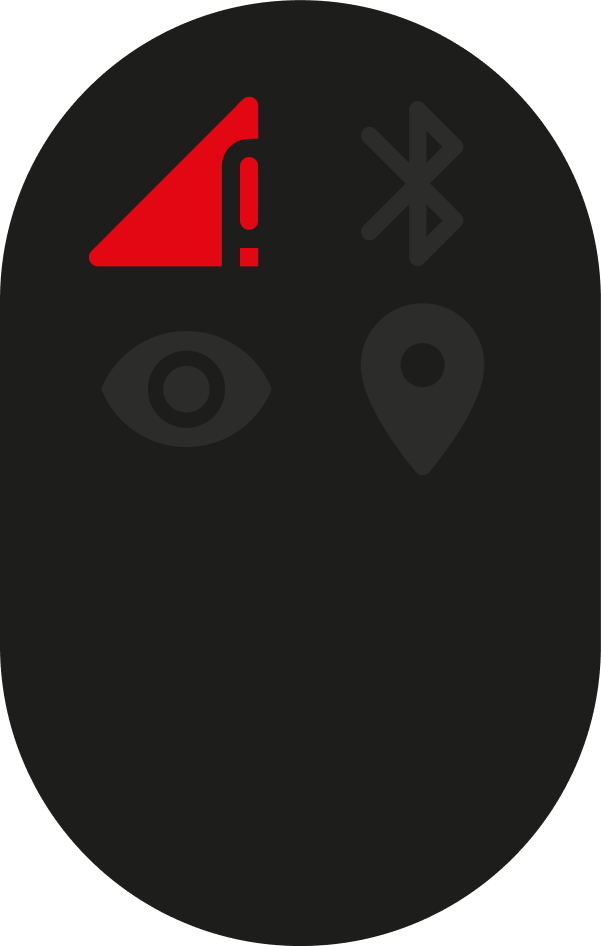

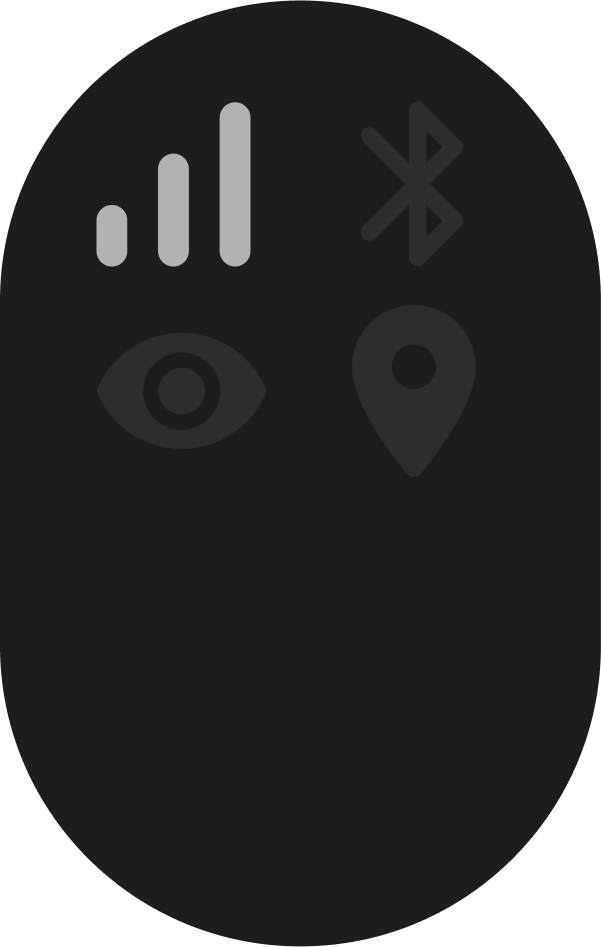

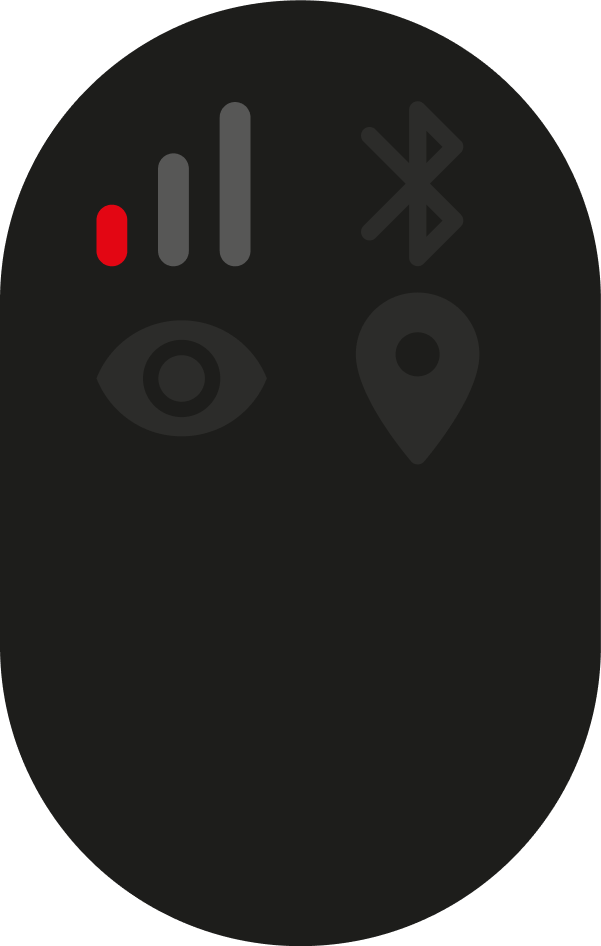

Signal Strength - No Signal / Weak / Medium / Strong |

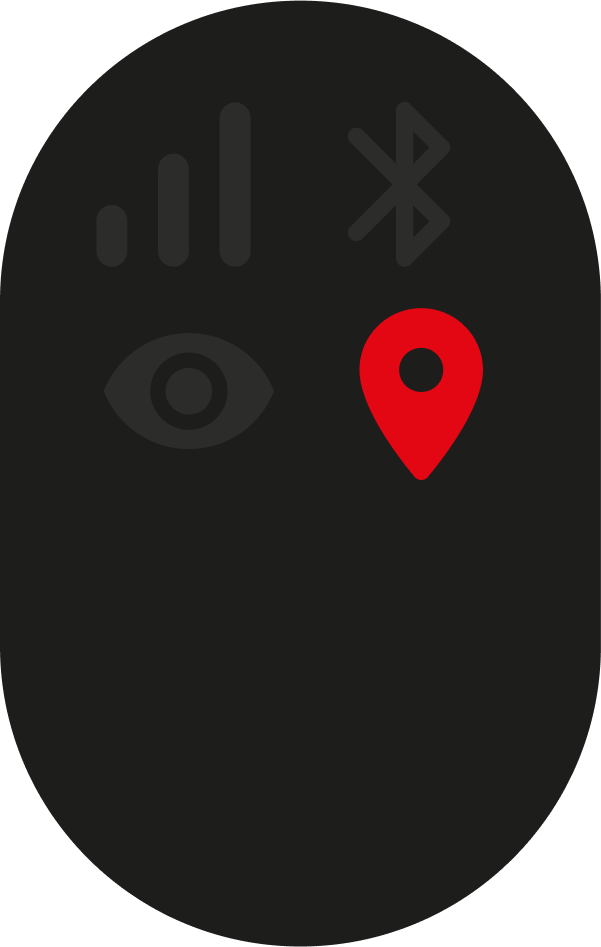

| No GPS Signal |
